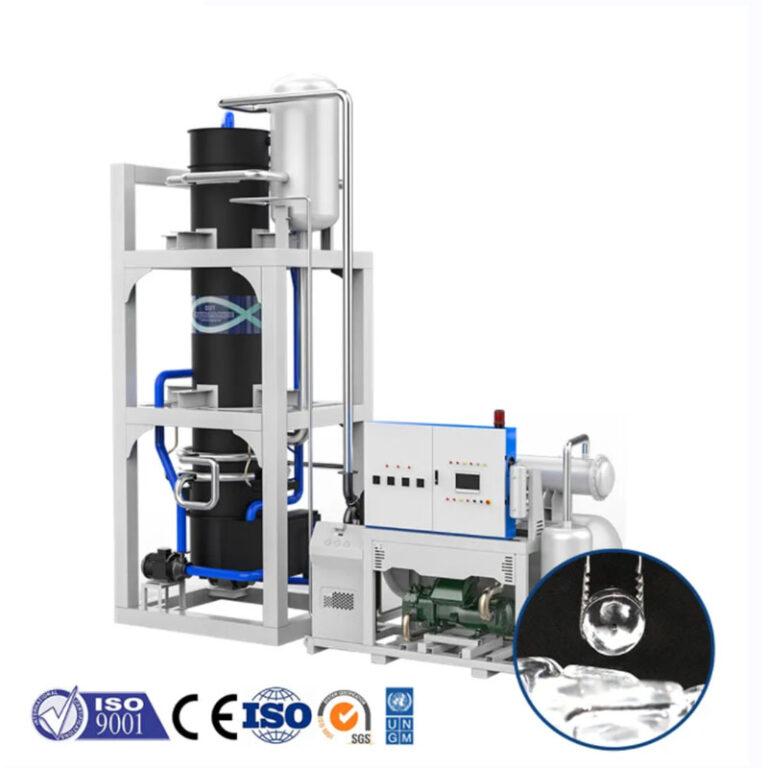

YZ-Customized 20 30 40 60 tons Industrial tube ice machine for philippines price

Ice making capacity 1000-50,000kg per 24hrs
Ice storage capacity 1000kg
Ice Shape Tube,Very regular, no crushed ice
Voltage 380V/3phase/50Hz
Power 4.28KW~87.6KW
Weight 900 KG
Refrigerant R22 or R404a
Cooling method Water / Air cooled condenser
Warranty 1 Year

Technical Parameters

Ice making capacity1000-50,000kg per 24hrs
Ice storage capacity1000kg
Ice ShapeTube,Very regular, no crushed ice
Voltage380V/3phase/50Hz
Power4.28KW~87.6KW
Weight900 KG
RefrigerantR22 or R404a
Cooling methodWater / Air cooled condenser
Warranty1 Year

Product overview

Why choose us

1.Superior R&D team
①latest technology on the refrigeration system which reduce the electricity consumption
②special design on the ice defrosting
③unique tube ice machine evaporator process
④special design for the ice cutter.
2.Mature pre-sales and after-sales service
①It can make different size tube ice.
②Localized after-sales service in some countries.
③Provide Installation or After-sales Service Global Wide.
3.Easy Operation
Fully automatic, easy installation, easy operation, easy maintenance

TUBE ICE MACHINE PARAMETERS

ModelDaily output(T/ 24 h)Compressor PowerFan Power for Cooling TowerCooling Pump PowerUnit Size (L*W*H mm)(Integrated  Type)Unit N.W. (kg)
YZ 1014.1 kw0.25 kw1.1 kw1100*900*1780900
YZ 2027.44 kw0.25 kw1.5 kw1250*1000*19501200
YZ 30310 kw0.55 kw1.5 kw1300*1100*22001500
YZ 50519.9 kw0.55 kw2.2 kw1600*1400*22501800

Model

Daily output
(T/24 h)

Compressor
Power

Fan Power for Cooling Tower

Cooling Pump Power
Unit size (L*W*H mm)
(Split type)

Unit N.W.(kg)
Main HostBrine Tank
YZ 1001027.9 kw1.5 kw4 kw1900*1600*18501200*1200*33903500
YZ 100+1039.8 kw1.5 kw4 kw2400*1700*20001200*1200*33903700
YZ 1501546.4 kw1.5 kw5 kw2700*2000*22001500*1200*42504250
YZ
200
2055.7 kw2.2 kw7.5 kw2800*2200*25001500*1200*47006500
YZ 3003083.6 kw2.2 kw7.5 kw3100*2200*25001800*1500*57007200
YZ 40040111.4 kw2.2 kw11 kw3900*2250*25002000*1500*68008300
YZ 50050139.3 kw3.75 kw15 kw4500*2250*25002200*1800*72009500

More information

Cooperation Case

How to install the machine

a. manual book and video will be provided to guide you how to install the machine, and also our service online.
b. technician can be sent to customer's site too, while the round ticket, visa, accommodation is at customer cost, Installation fee 100 USD/day/person. Local labors are necessary to support our technician's work.

Ice maker machine

1. Standard wooden case.
2. Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3. Machine come into use, customer only need prepare power for the machine.
4. All required components for install the machine will be provide.
